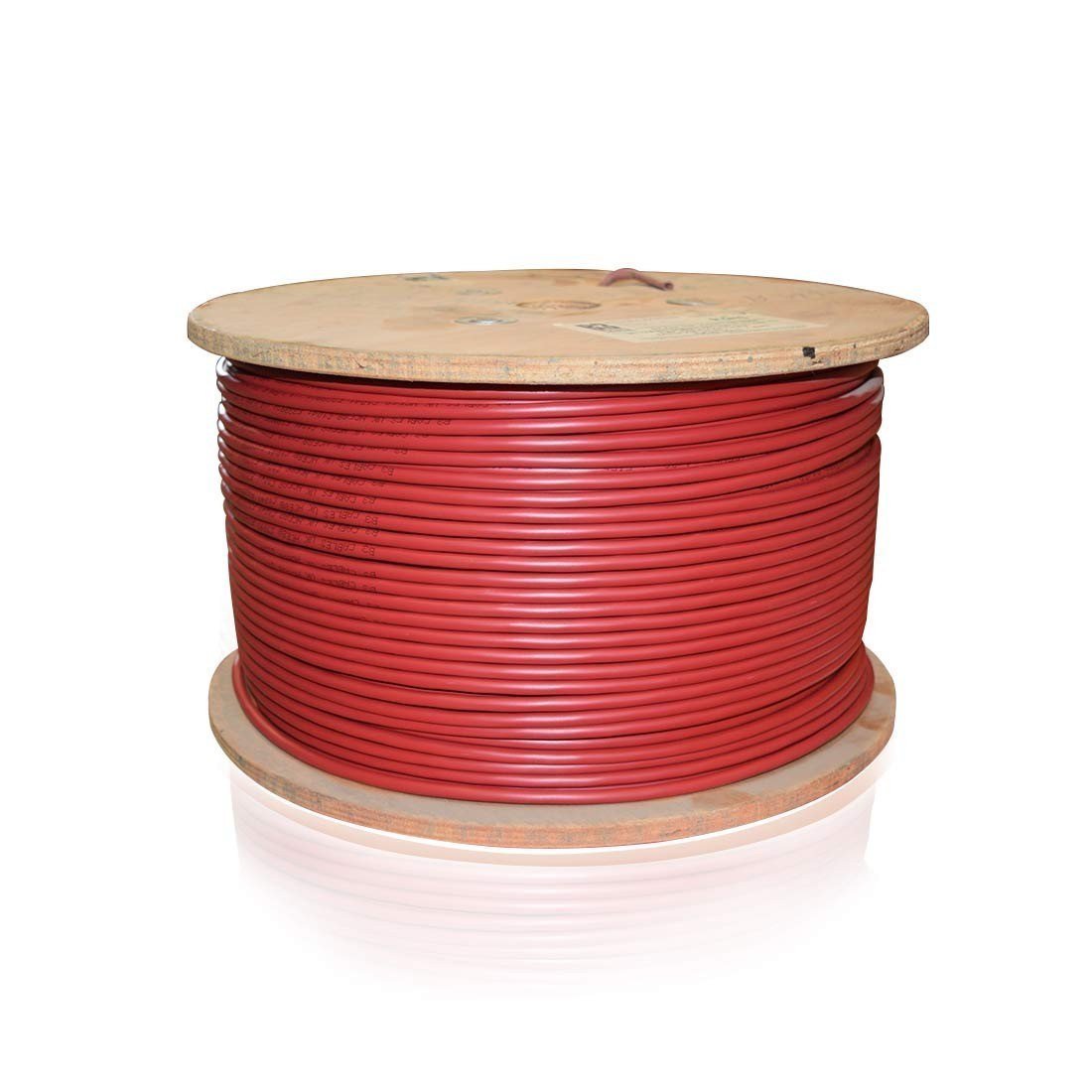

Power Limited Red Fire Alarm Cable

Description: 16 AWG 2/C Shielded FPLR-CL2R
Compliance: UL Standards 13 & 1424; NEC Articles 725 & 760

Construction:
Conductor: 16 AWG Solid Bare Copper
No. of Conductors: 2

Insulation:
Type: Polypropylene
Color: Black, Red
Thickness: 0.008″ nom.
Diameter: 0.066″ nom”
Lay Length: 2.5″ nom.
Drain Wire: 20 Solid Tinned-Copper
Shield: 0.001″ thick Aluminum/Mylar

Jacket
Type: PVC
Color: Red
Thickness: 0.015″ nom.
Diameter: 0.166″ nom.
Legend (Ink Print): HONEYWELL P/N 4406 2C16 SHIELDED E175105 (UL) FPLR OR CL2R C(UL)US
FT4 SUN RES (RoHS) W/O# XXXXXX-XXXXXX XXXXFT DEVICE/ZONE A B C D E
F 1 2 3 4 5 6 7 8 9

Properties:
Temperature Rating: -20 to 75°C
Operating Voltage: 300 Volts max.
Capacitance: 46 pf/ft nom.
Impedance: 34 Ohms nom.
DC Resistance: 4.1 Ohms/M’ at 20°C
Flame Rating: UL 1666 Riser, C(UL) FT4
